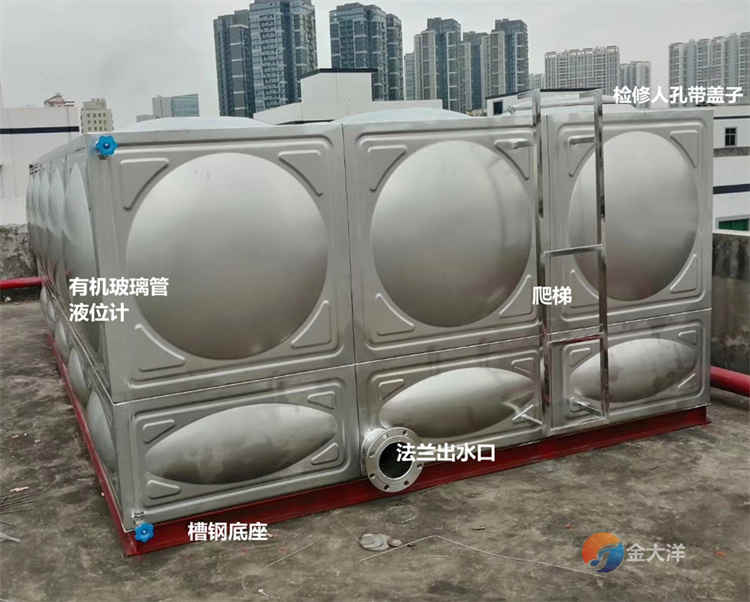

不锈钢水箱的进水口,出水口,溢流口,放空口,接口往往需要安装不锈钢法兰接口。以方便与水管的连接。不锈钢水箱的法兰接口采用什么样的标准尤为重要,如果标准不一致,那么就无法匹配接入。因此下列表中为我国法兰接口的标准, 它包括了内径外径,螺栓孔的中心距,孔径,数量等参数。在我国范围内常规法兰接口参数数据,参考一下2个表格,准没错。金大洋实业
不锈钢水箱所配的法兰与短管制作标准,立面安装垂直度高,工艺精湛。
新标准平焊法兰(1.6MPa) 81-94 82-60
|
通径
|
内径
|
外径
|
螺栓孔中心距
|
台直径
|
台高度
|
法兰厚度
|
螺栓孔
|
理论重量
|
直径
|
个数
|
KG
|
10MM
|
15
|
90
|
65
|
41
|
2
|
14
|
14
|
4
|
0.61
|
15MM
|
19
|
95
|
65
|
46
|
2
|
14
|
14
|
4
|
0.68
|
20MM
|
26
|
105
|
75
|
56
|
2
|
16
|
14
|
4
|
0.94
|
25MM
|
33
|
115
|
85
|
65
|
2
|
16
|
14
|
4
|
1.12
|
32MM
|
39
|
140
|
100
|
76
|
2
|
18
|
18
|
4
|
1.86
|
40MM
|
46
|
150
|
110
|
84
|
2
|
18
|
18
|
4
|
2.12
|
50MM
|
59
|
165
|
125
|
99
|
2
|
20
|
18
|
4
|
2.77
|
65MM
|
78
|
185
|
145
|
118
|
2
|
20
|
18
|
4
|
3.31
|
80MM
|
91
|
200
|
160
|
132
|
2
|
20
|
18
|
8
|
3.59
|
100MM
|
110
|
220
|
180
|
156
|
2
|
22
|
18
|
8
|
4.57
|
125MM
|
135
|
250
|
210
|
184
|
2
|
22
|
18
|
8
|
5.65
|
150MM
|
161
|
285
|
240
|
211
|
2
|
24
|
22
|
8
|
7.61
|
200MM
|
222
|
340
|
295
|
266
|
2
|
26
|
22
|
12
|
9.69
|
250MM
|
276
|
405
|
355
|
319
|
2
|
28
|
26
|
12
|
13.8
|
300MM
|
328
|
460
|
410
|
370
|
2
|
32
|
26
|
12
|
18.9
|
350MM
|
381
|
520
|
470
|
429
|
2
|
35
|
26
|
16
|
24.7
|
400MM
|
430
|
580
|
525
|
480
|
2
|
38
|
30
|
16
|
32.1
|
450MM
|
485
|
640
|
585
|
548
|
2
|
42
|
30
|
20
|
40.5
|
500MM
|
535
|
715
|
650
|
609
|
2
|
46
|
33
|
20
|
57.6
|
600MM
|
636
|
840
|
770
|
720
|
2
|
52
|
36
|
20
|
88.2
|
700MM
|
724
|
|
|
|
|
|
|
|
|
800MM
|
824
|
|
|
|
|
|
|
|
|
900MM
|
924
|
|
|
|
|
|
|
|
|
1000MM
|
1024
|
|
|
|
|
|
|
|
|
1200MM
|
1224
|
|
|
|
|
|
|
|
|
